Threaded or Threadless? Check Your Old MTB

Before ordering any cockpit part, find out whether your bike has a threaded or threadless steering system. The check takes two minutes.

Old mountain bikes use both systems, and their stems do not interchange. Get this wrong and you own a very nice part that fits nothing on your bike.

Look at the stem

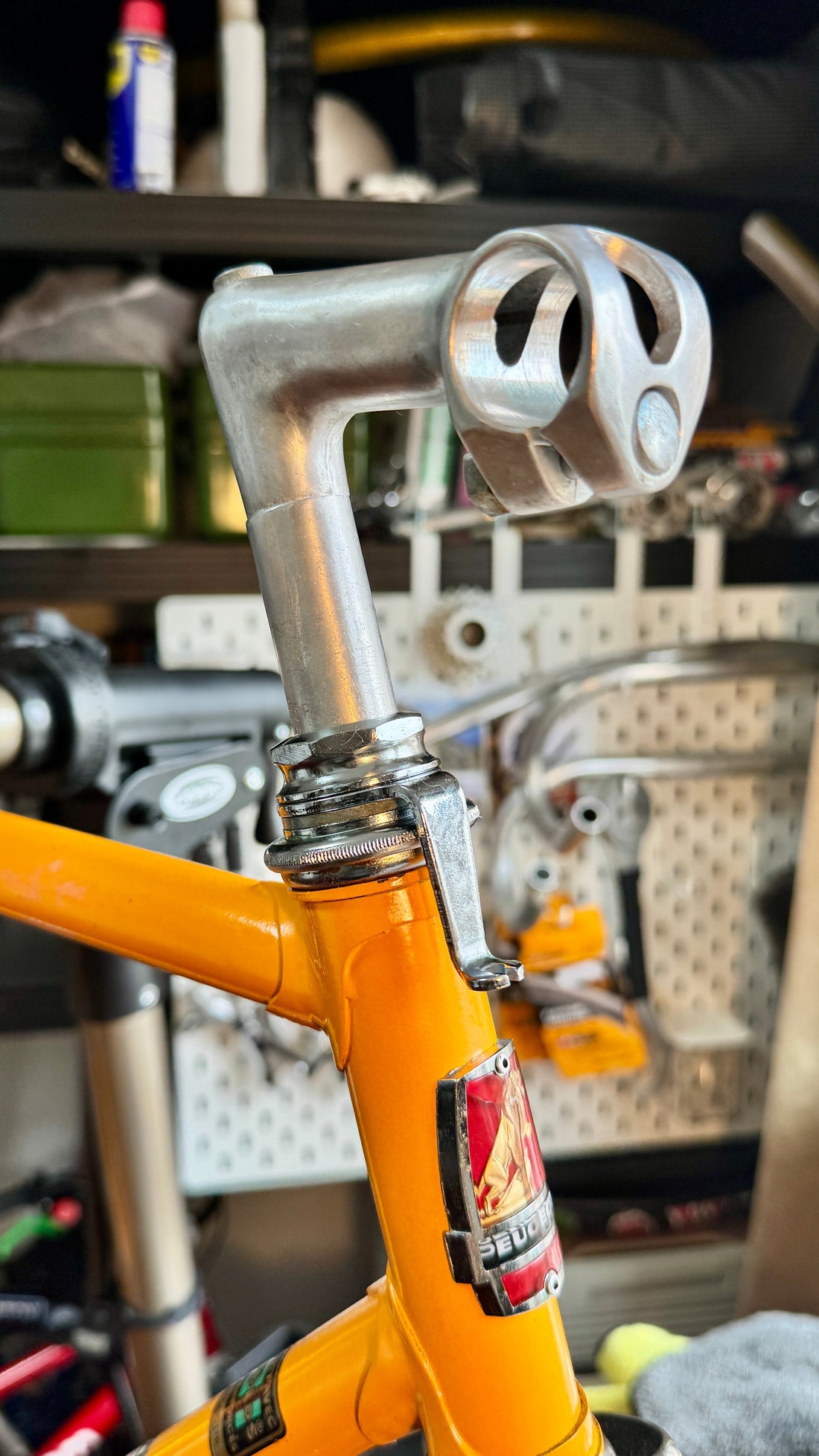

If the stem forms an L shape and disappears down inside the fork—usually with one bolt on top—you have a threaded fork with a quill stem. Most mountain bikes from the early and mid-1990s use this arrangement.

If the stem clamps around the outside of the fork steerer, with spacers above or below it, you have a threadless headset. This became common later in the 1990s.

Why it matters

A quill stem wedges inside a threaded steerer. On a 1-inch fork, the quill is almost always 22.2 mm. A threadless stem clamps around the outside of the steerer, usually 1 1/8 inches. They are not interchangeable. Handlebar clamp diameter is a separate measurement: many old bars are 25.4 mm; many modern bars are 31.8 mm.

Quill-to-threadless adapters can work, but they add stack and another interface. A longer quill stem is often the cleaner answer.

Measure the bike you actually have

Catalogue specifications are useful until thirty years of owners have changed the stem, fork or headset. Check the bike in front of you: stem type, quill or steerer size, and handlebar clamp diameter. Then order.

Do not exceed the insertion marks

A quill stem must remain below its minimum-insertion line. A threadless stem needs enough steerer engagement and the correct spacer arrangement for the headset to preload properly. More visible height is not useful if the connection is unsafe.

Common sizes, with exceptions

A traditional 1-inch threaded fork commonly takes a 22.2 mm quill. A 1 1/8-inch threadless steerer measures 28.6 mm outside. Older French, BMX and less common mountain-bike systems can differ, so measure rather than forcing a part that is close.

Write the steering size beside the other four numbers in our parts-order checklist. If cockpit comfort is the goal, use the comfort guide before choosing the tallest available stem.

We stock cockpit kits for both systems: Everyday Cockpit Kit—Quill and Everyday Cockpit Kit—Threadless. Not sure which is yours? Send us a clear photo of the stem and headset. Fit Help is free.
