Trek 1990s steel mountain bikes · 1990–1999

The Trek archive gathers the brand’s 1990s steel mountain bikes by year — frame tubing, sizes, colours and original component highlights for riders, restorers and anyone staring at a half-readable 900-series decal.

From the everyday 800-series bikes to the familiar 930, 950, 970 and 990 steel hardtails, Trek covered grocery runs, trail miles and XC racing without much fuss. Model numbers and parts changed across markets and production runs, so treat this as a working reference, not gospel. Thirty-year-old bikes have lived complicated lives.

1990

Trek 800 Antelope (1990)

View model details →

Trek ATB Cro-moly main tubes & stays

High tensile fork

15, 16.5, 18, 20, 22, 24" and 17" women's

White w/ Bright Green decals Black w/ Bright Blue decals

Drivetrain: Shimano 200GS

Brakeset: Shimano 200GS cantilever w/ SLR ATB levers

Wheelset: 26" Araya MP-22 w/ Shimano hubs

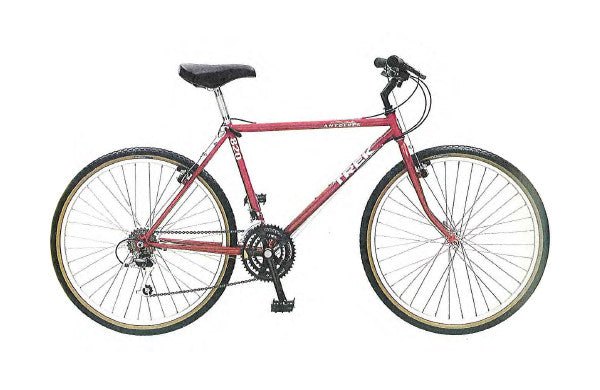

Trek 820 Antelope (1990)

View model details →

Trek ATB Cro-moly main tubes & stays

High tensile fork

15, 16.5, 18, 20, 22, 24" and 17" women's

Bright Red w/ White decals Silver w/ Intense Blue decals

Drivetrain: Shimano 200GS w/ Rapid Fire shifters

Brakeset: Shimano 200GS cantilever w/ SLR ATB levers

Wheelset: 26" Araya MP-22 w/ Shimano hubs

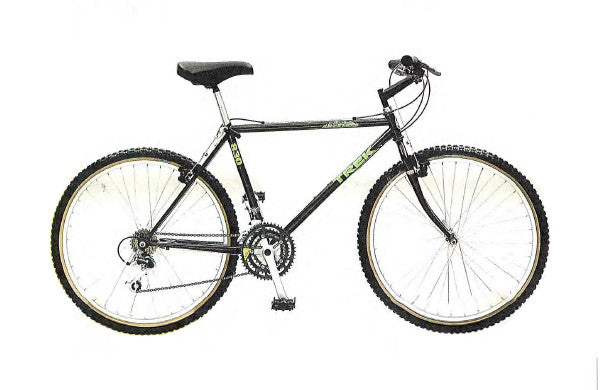

Trek 830 Antelope (1990)

View model details →

Trek ATB Cro-moly main tubes & stays

ATB Cro-Moly fork

15, 16.5, 18, 20, 22, 24" and 17" women's

Black w/ Bright Green decals Silver w/ Intense Blue decals

Drivetrain: Shimano Exage 300 LX w/ Rapid Fire shifters

Brakeset: Shimano Exage 300 LX cantilever w/ SLR ATB levers

Wheelset: 26" Araya MP-22 w/ Shimano hubs

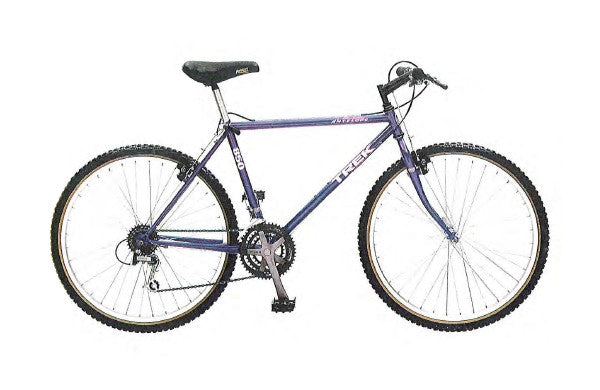

Trek 850 Antelope (1990)

View model details →

Tange ATB double butted Cro-moly main tubes

ATB Cro-Moly stays

15, 16.5, 18, 20, 22, 24" and 17" women's

Intense Blue w/ White decals White w/ Black decals

Drivetrain: SunTour XCE w/ SunTour X-press Accushift Plus shifters

Brakeset: Dia-Compe X-1 cantilever w/ DC short stop BRS levers

Wheelset: 26" Araya VP-20 w/ J.Y. hubs

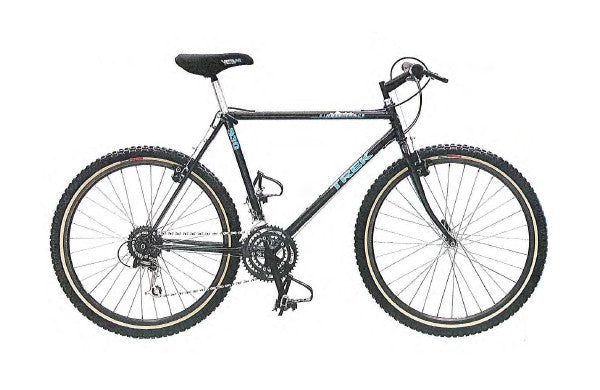

Trek 930 Single Track (1990)

View model details →

True Temper AT ATB double butted Cro-moly main tubes

True Temper Cro-moly stays

16.5, 18, 20, 22" and 16, 18" compact

Black w/ Bright Blue decals Bright Silver w/ Intense Blue decals

Drivetrain: SunTour X-1 w/ SunTour X-press Accushift Plus shifters

Brakeset: Dia-Compe X-1 cantilever w/ DC short stop BRS levers

Wheelset: 26" Matrix Single Track rims w/ SunTour hubs

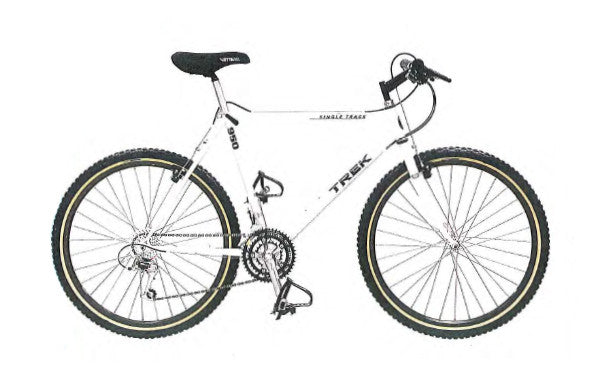

Trek 950 Single Track (1990)

View model details →

True Temper AT ATB double butted Cro-moly main tubes

True Temper Cro-moly stays

16.5, 18, 20, 22" and 16, 18" compact

White w/ Black decals Intense Blue w/ White decals

Drivetrain: Shimano Deore LX w/ Rapid Fire shifters

Brakeset: Shimano Deore LX cantilever w/ SLR 2-finger ATB levers

Wheelset: 26" Matrix Single Track rims w/ Shimano Deore LX hubs

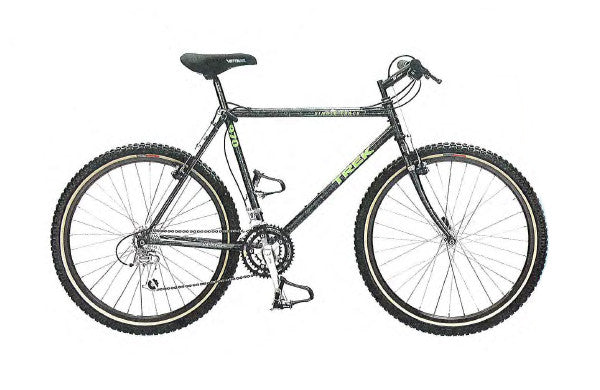

Trek 970 Single Track (1990)

View model details →

True Temper AT ATB double butted Cro-moly main tubes

True Temper tapered stays

16.5, 18, 20, 22" and 16, 18" compact

Black & White Splash w/ Bright Green decals Bright Red w/ White decals

Drivetrain: Shimano Deore DX w/ Rapid Fire shifters

Brakeset: Shimano Deore DX cantilever w/ SLR 2-finger levers

Wheelset: 26" Matrix Single Track Comp rims w/ Shimano Deore DX hubs

Trek 990 Single Track (1990)

View model details →

True Temper ATX heat treated ATB Cro-moly main tubes

True Temper tapered stays

16.5, 18, 20, 22"

Black & White Splash w/ White decals

Drivetrain: Shimano Deore XT w/ Rapid Fire shifters

Brakeset: Shimano Deore XT cantilever w/ SLR 2-finger levers

Wheelset: 26" Matrix Mt. Aero rims w/ Shimano Deore XT hubs

1991

Trek 800 Antelope Sport Trail (1991)

View model details →

Trek ATB cro-moly main tubes

Trek tapered stays

14.5, 16.5, 18, 20, 22, 24" and 17" women's

Black w/ Green on Blue White decals Red w/ White on Silver and Black decals

Drivetrain: Shimano M-100 w/ Rapid Fire shifters

Brakeset: Shimano M-100 cantilever w/ SLR ATB levers

Wheelset: 26" Araya MP-22 rims w/ Shimano hubs

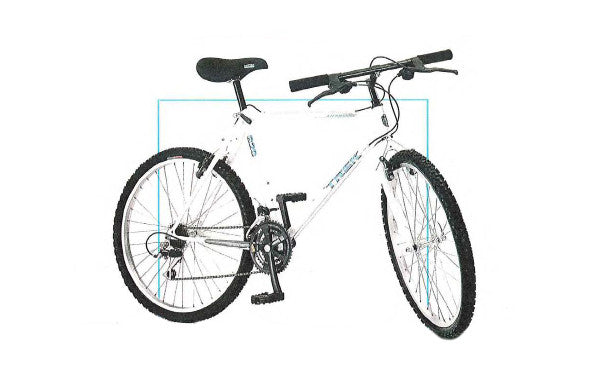

Trek 820 Antelope Trail Performance (1991)

View model details →

Trek ATB cro-moly main tubes

Trek tapered stays

14.5, 16.5, 18, 20, 22" and 17" women's

White and Black Splash w/ Blue on Silver and Black decals Black w/ White on Yellow and Silver decals

Drivetrain: Shimano 200GS w/ Rapid Fire shifters

Brakeset: Shimano 200GS cantilever w/ SLR ATB levers

Wheelset: 26" Araya VP-20 rims w/ Shimano hubs

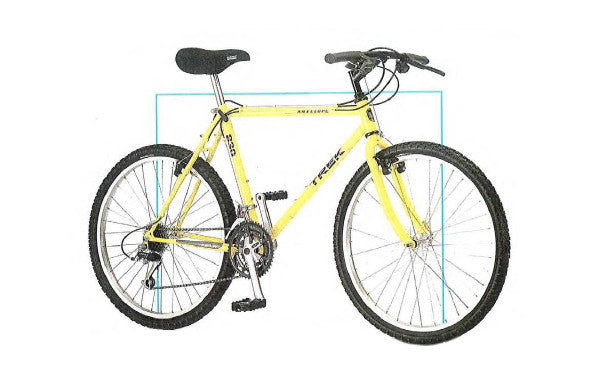

Trek 830 Antelope Mountain Sport (1991)

View model details →

Tange ATB double butted Cro-moly main tubes

Tange ATB tapered Cro-moly stays

14.5, 16.5, 18, 20, 22, 24"

Yellow and Black Splash w/ Black on Silver and Blue decals Intense Blue w/ White on Rose and Yellow decals

Drivetrain: Shimano Exage 300 LX w/ Rapid Fire shifters

Brakeset: Shimano Exage 300 LX cantilever w/ SLR ATB levers

Wheelset: 26" Araya VP-20 rims w/ Shimano hubs

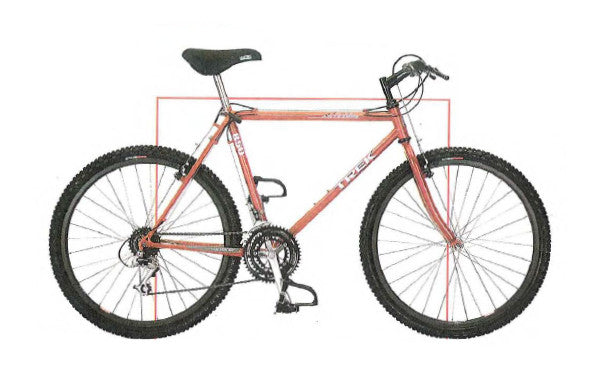

Trek 850 Antelope Performance (1991)

View model details →

Tange ATB double butted Cro-moly main tubes

Tange ATB tapered Cro-moly stays

14.5, 16.5, 18, 20, 22"

Red and Black Splash w/ Black on White and Silver decals

Drivetrain: SR XCE crankset; SunTour XCE GX front & SunTour XCE rear derailleur; SunTour X-Press Accushift Plus shifters

Brakeset: Dia-Compe XCE cantilever w/ DC BRS ATB levers

Wheelset: 26" Matrix Single Track rims w/ SunTour hubs

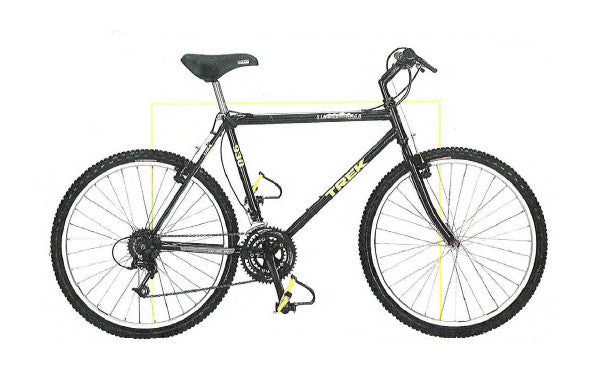

Trek 930 Single Track Performance (1991)

View model details →

True Temper OD double butted Cro-moly main tubes

True Temper tapered Cro-moly stays

15, 16.5, 18, 20, 22"

Black w/ Yellow on White and Silver decals White w/ Purple on Silver and Green decals

Drivetrain: SR X-1 cransket; SunTour XC-LTD front & SunTour X-1 rear derailleur; SunTour X-Press Accushift Plus shifters

Brakeset: Dia-Compe X-1 cantilever w/ DC short stop BRS levers

Wheelset: 26" Matrix Single Track Comp rims w/ Sansin hubs

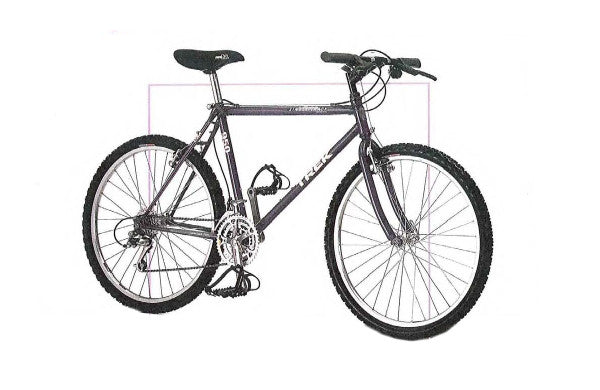

Trek 950 Single Track Performance (1991)

View model details →

True Temper OD double butted Cro-moly main tubes

True Temper tapered Cro-moly stays

15, 16.5, 18, 20, 22"

Purple w/ White on Conch and Silver decals White and Black Splash w/ Red on Purple and Silver decals

Drivetrain: Shimano Deore LX w/ Rapid Fire shifters

Brakeset: Shimano Deore DX cantilever w/ SLR ATB levers

Wheelset: 26" Matrix Single Track Comp rims w/ Shimano Deore LX hubs

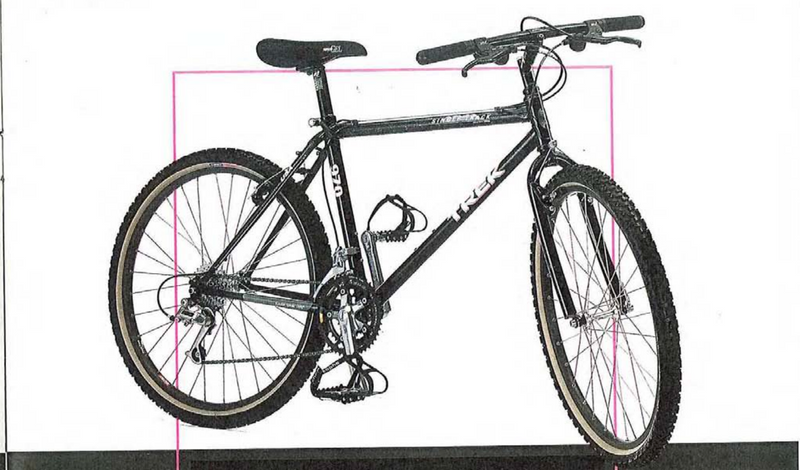

Trek 970 Single Track Competition (1991)

View model details →

True Temper OD ATB double butted Cro-moly main tubes

True Temper OS tapered Cro-moly stays

15, 16.5, 18, 20, 22"

Black and White Splash w/ White on Silver and Pink decals

Drivetrain: Shimano Deore DX w/ Rapid Fire shifters

Brakeset: Shimano Deore XT cantilever w/ Super SLR 2-finger ATB levers

Wheelset: 26" Matrix Single Track Comp rims w/ Shimano Deore DX hubs

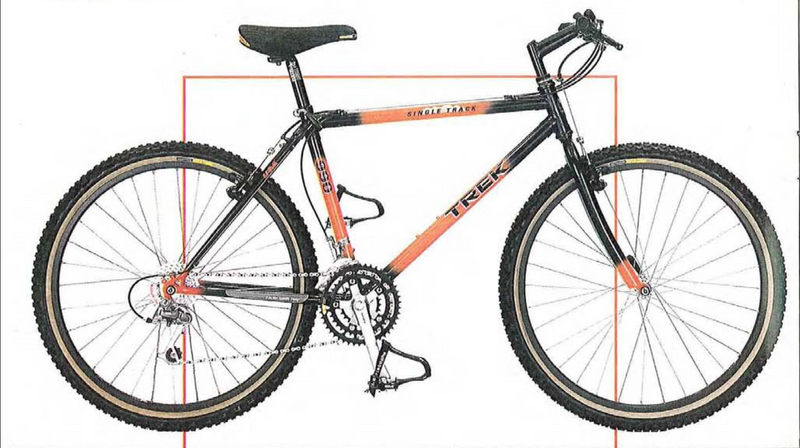

Trek 990 Single Track Competition (1991)

View model details →

True Temper OD heat treated ATB Cro-moly main tubes

True Temper OS tapered Cro-moly stays

15, 16.5, 18, 20, 22"

Black and Conch w/ Black on White and Silver decals

Drivetrain: Shimano Deore XT

Brakeset: Shimano Deore XT cantilever w/ 2-finger ATB levers

Wheelset: 26" Matrix Single Track Comp rims w/ Shimano Deore XT hubs

1992

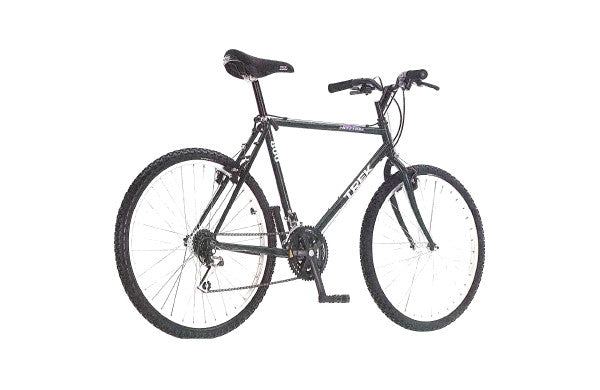

Trek 800 Antelope Sport Trail (1992)

View model details →

Tange Cro-moly

Trek tapered Cro-moly stays

14.5, 16.5, 18, 20, 22, 24" and 17" women's

Black Forest Green w/ White decals White w/ Black Splash and Red decals

Drivetrain: Shimano M102 GS crankset; Shimano M-100 derailleurs; Shimano 200 GS Rapid Fire shifters

Brakeset: Shimano M-100 w/ SLR levers

Wheelset: 26" Araya MP-22 rims w/ Shimano hubs

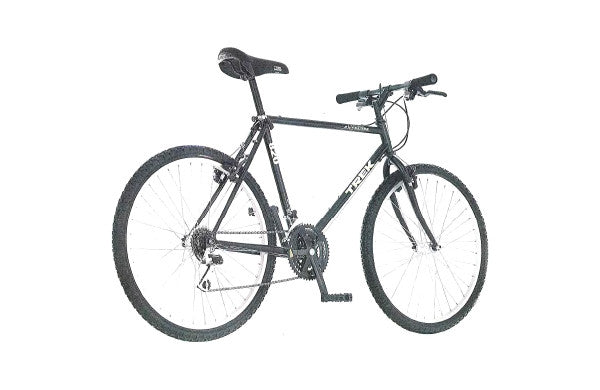

Trek 820 Antelope Sport Trail (1992)

View model details →

Tange Cro-moly

Trek tapered Cro-moly stays

14.5, 16.5, 18, 20, 22" and 17" women's

Black w/ White decals White w/ Black Splash and Bright Blue decals Electric Blue w/ Black Splash and Black decals

Drivetrain: Shimano 200 GS w/ Rapid Fire shifters

Brakeset: Shimano 200 GS cantilever w/ SLR levers

Wheelset: 26" Araya VP-20 rims w/ Shimano hubs

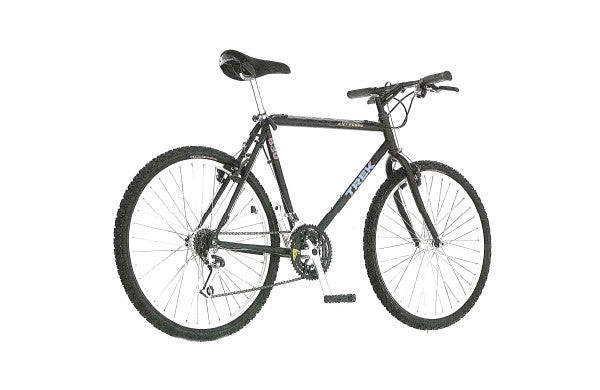

Trek 830 Antelope Trail Performance (1992)

View model details →

True Temper double butted OD Cro-moly main tubes

Trek ATB tapered Cro-moly stays

14.5, 16.5, 18, 20, 22, 24"

Flat Black White w/ Purple decals

Drivetrain: Shimano 300 LX w/ Shimano M050S LX Rapid Fire shifters

Brakeset: Shimano 300 LX cantilever w/ SLR levers

Wheelset: 26" Araya VP-20 rims w/ Shimano hubs

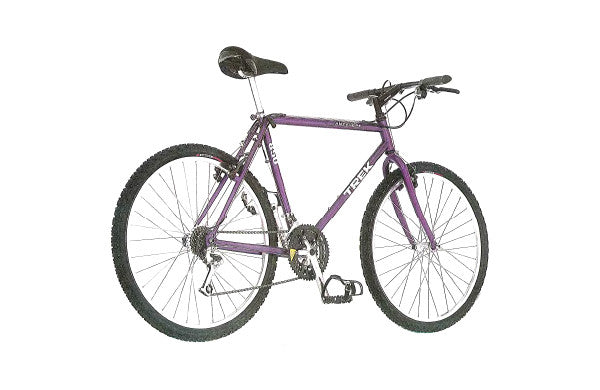

Trek 850 Antelope Performance (1992)

View model details →

True Temper double butted OD Cro-moly main tubes

Trek ATB tapered OD Cro-moly stays

14.5, 16.5, 18, 20, 22"

Sour Grape w/ White decals

Drivetrain: Shimano 400 LX w/ Shimano M050S LX Rapid Fire shifters

Brakeset: Shimano 500 LX cantilever w/ SLR levers

Wheelset: 26" Matrix Single Track rims w/ Shimano hubs

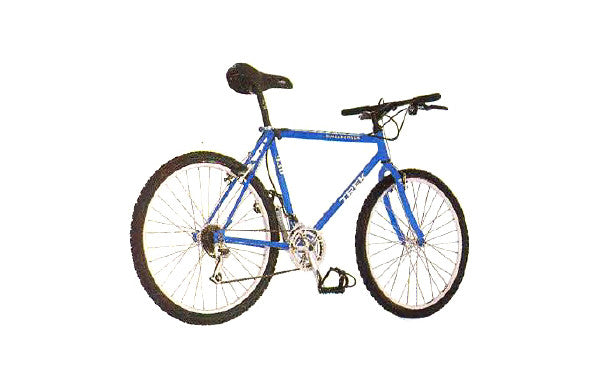

Trek 930 SingleTrack Performance (1992)

View model details →

True Temper OX double butted OD Cro-moly main tubes

True Temper tapered Cro-moly stays

15, 16.5, 18, 20, 22"

Electric Blue and Black Splash w/ White decals Trek Red w/ Purple decals

Drivetrain: Shimano 500 LX crankset; Shimano 400 LX derailleurs; Shimano M050S Rapid Fire shifters

Brakeset: Shimano 500 LX cantilever w/ SLR levers

Wheelset: 26" Matrix Single Track Comp rims w/ Shimano 400 LX hubs

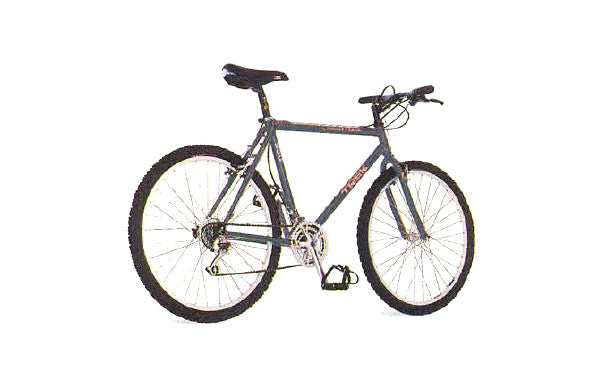

Trek 950 SingleTrack Performance (1992)

View model details →

True Temper OX Comp II double butted OD Cro-moly main tubes

True Temper OD tapered Cro-moly stays

15, 16.5, 18, 20, 22"

Black Forest Green w/ Gold decals Black w/ White decals

Drivetrain: Shimano Deore LX w/ Shimano Deore DX Rapid Fire shifters

Brakeset: Shimano Deore DX cantilever w/ SLR levers

Wheelset: 26" Matrix Single Track Comp rims w/ Shimano Deore LX hubs

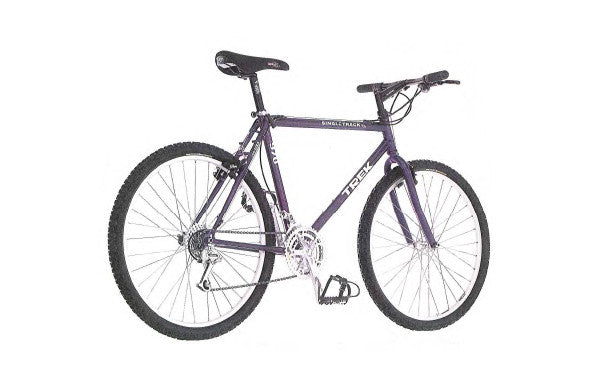

Trek 970 SingleTrack Competition (1992)

View model details →

True Temper OX Comp II double butted OD Cro-moly main tubes

True Temper OD tapered Cro-moly stays

15, 16.5, 18, 20, 22"

Sour Grape w/ White decals

Drivetrain: Shimano Deore DX w/ Shimano Deore XT Rapid Fire Plus shifters

Brakeset: Shimano Deore DX cantilever w/ Servo Wave 2-finger levers

Wheelset: 26" Matrix Single Track Comp rims w/ Shimano Deore DX hubs

1993

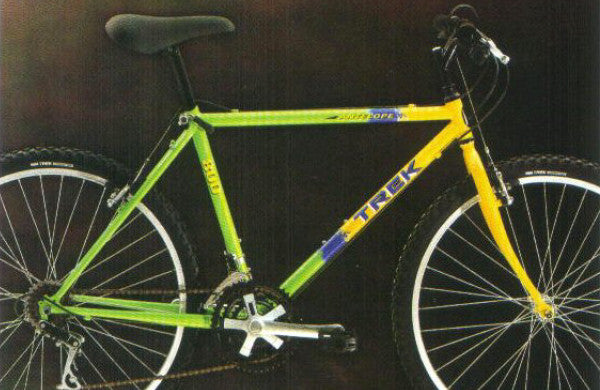

Trek 800 Antelope Sport (1993)

View model details →

Tange butted Cro-moly main tubes

Cro-moly stays

14.5, 16.5, 18, 20, 22" and 17" women's

Yellow to Green fade w/ Yellow & Purple decals Black Forest Green w/ Burgundy decals

Drivetrain: Shimano Altus C20; Unilever rear derailleur; Unilever dual SIS shifters

Brakeset: Shimano Altus C20 cantilever M-System

Wheelset: 26" Araya MP-22 w/ Alloy hubs

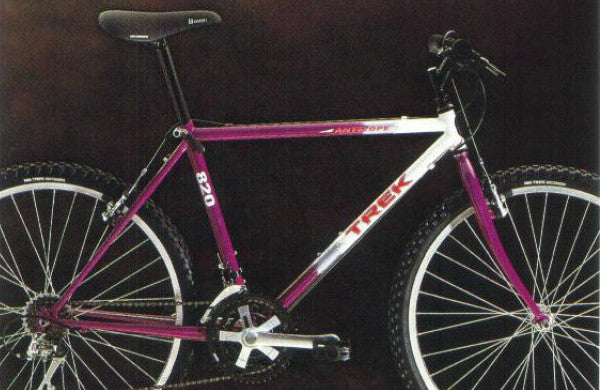

Trek 820 Antelope Sport Trail (1993)

View model details →

Tange butted Cro-moly main tubes

Cro-moly stays

14.5, 16.5, 18, 20, 22" and 17, 20" women's

Champagne to Electric Plum fade w/ Hood River Red & White decals Trek Red w/ Purple decals

Drivetrain: Shimano Altus C10 w/ Rapid Fire + dual SIS shfters

Brakeset: Shimano Altus C10 cantilever M-System

Wheelset: 26" Araya VP-20 rims w/ Shimano Altus hubs

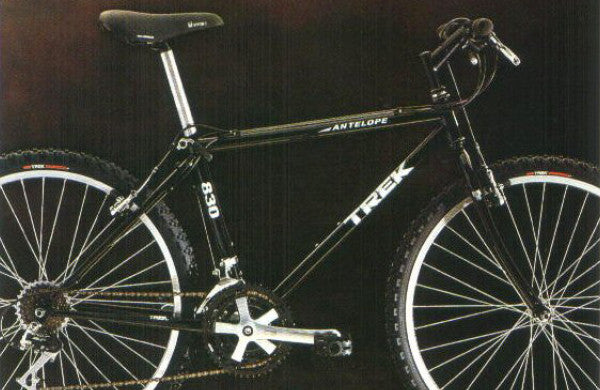

Trek 830 Antelope Performance Trail (1993)

View model details →

Tange butted Cro-moly main tubes

Cro-moly stays

14.5, 16.5, 18, 20, 22"

Black w/ White decals Lunar to Green fade w/ White decals

Drivetrain: Shimano Altus A20 w/ Rapid Fire + dual SIS shfters

Brakeset: Shimano Altus A20 cantilever M-System

Wheelset: 26" Araya VP-20 rims w/ Shimano Altus hubs

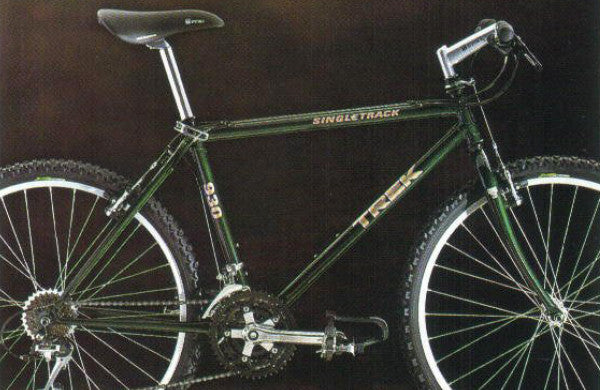

Trek 930 SingleTrack Performance (1993)

View model details →

True Temper OX Comp II butted Cro-moly main tubes

True Temper tapered OD Cro-moly stays

15, 16.5 18, 20, 22"

Black Forest Green w/ Black decals Electric Plum w/ Black decals

Drivetrain: Shimano Altus A10 w/ Rapid Fire + dual SIS shfters

Brakeset: Shimano Altus A10 cantilever M-System

Wheelset: 26" Matrix SingleTrack Comp rims w/ Shimano Exage hubs

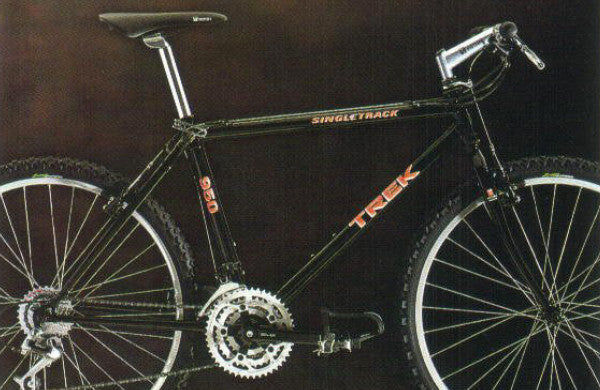

Trek 950 SingleTrack Performance (1993)

View model details →

True Temper OX Comp II butted Cro-moly main tubes

True Temper tapered OD Cro-moly stays

15, 16.5, 18, 20, 22"

Black w/ Conch decals

Drivetrain: Shimano Deore LX crankset; Shimano Deore LX front & Deore XT rear derailleur; Shimano Deore LX Rapid Fire + dual SIS shifters

Brakeset: Shimano Deore LX cantilever M-System

Wheelset: 26" Matrix SingleTrack Comp rims w/ Shimano Deore LX hubs

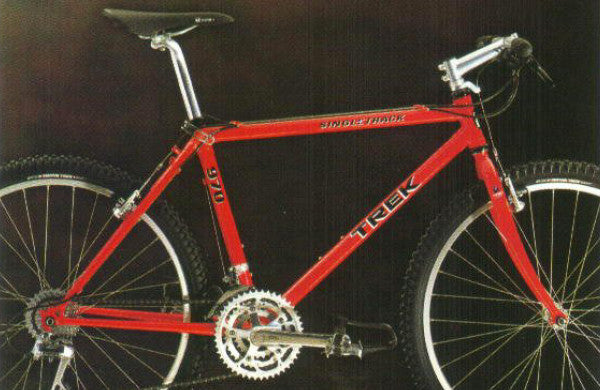

Trek 970 SingleTrack Competition Race (1993)

View model details →

True Temper OX Comp II butted OD Cro-moly main tubes

True Temper tapered OD Cro-moly stays

15, 16.5, 18, 20, 22"

Red w/ Black decals

Drivetrain: Shimano Deore XT derailleurs; Shimano Deore DX crankset; Shimano Deore DX Rapid Fire + SIS shifters

Brakeset: Shimano Deore DX cantilever M-System

Wheelset: 26" Matrix SingleTrack Pro rims w/ Shimano Deore DX hubs

1994

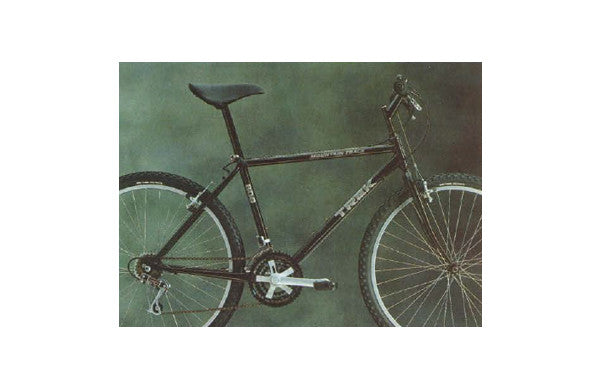

Trek 800 Mountain Track Sport (1994)

View model details →

Tensile main tubes TIG welded w/ tensile steel stays;

Tensile steel fork

14.5, 16.5, 18, 19.5, 21, 22.5"; 17, 20" women's

Black w/ White decals Pearl Red w/ Silver decals

Drivetrain: Shimano Tourney

Brakeset: Cold-forged alloy w/ Shimano TY21 levers

Wheelset: 26" Weinman alloy rims w/ Alloy hubs

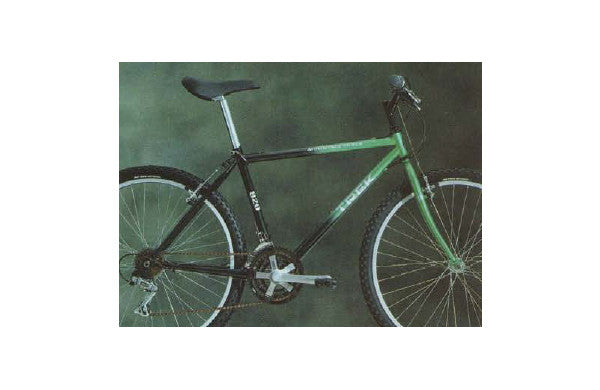

Trek 820 Mountain Track Sport Trail (1994)

View model details →

Trek Cro-moly main tubes TIG welded w/ tensile steel stays;

Cro-moly fork

14.5, 16.5, 18, 19.5, 21, 22.5, 24"; 17, 20" women's

Blue to Black fade w/ Silver decals Pearl Red w/ White decals

Drivetrain: Shimano Altus C50 crankset; Shimano Altus C50 front & Alivio MC-10 rear derailleur; Grip Shift SRT-300i shifters

Brakeset: Cold-forged alloy cantilever w/ Shimano TY21 levers

Wheelset: 26" Weinman alloy rims w/ Alloy hubs

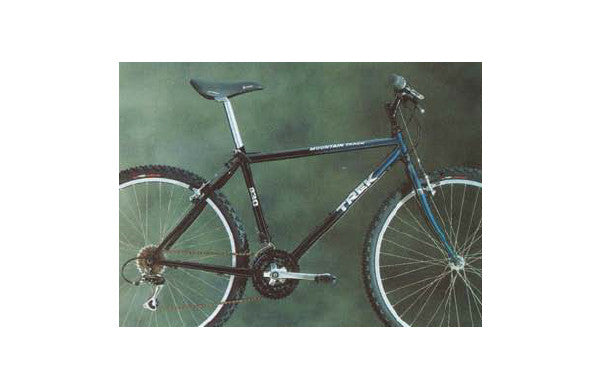

Trek 830 Mountain Track Performance Trail (1994)

View model details →

Trek oversize Cro-moly main tubes TIG welded w/ Trek Cro-moly stays;

Cro-moly fork

14.5, 16.5, 18, 19.5, 21, 22.5, 24"; 17, 20" women's

Blue to Black fade w/ Silver decals Pearl Red w/ White decals

Drivetrain: Shimano Alivio w/ Grip Shift SRT-300i

Brakeset: Cold-forged alloy cantilever w/ Shimano Altus C50 levers

Wheelset: 26" Weinman alloy rims w/ Alloy hubs

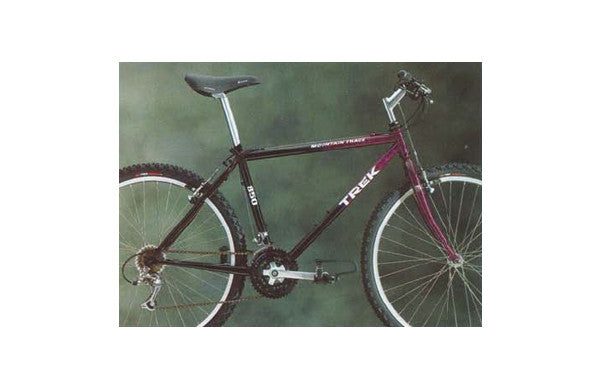

Trek 850 Mountain Track Performance (1994)

View model details →

Trek oversize Cro-moly main tubes TIG welded w/ Trek Cro-moly stays;

Cro-moly fork

14.5, 16.5, 18, 19.5, 21, 22.5"

Floating Violet to Black fade w/ White decals Steel Blue w/ Black Decals

Drivetrain: Shimano Alivio; Shimano STX rear-derailleur

Brakeset: Shimano Alivio cantilever M-Mystem

Wheelset: 26" Araya alloy rims w/ Shimano Alivio hubs

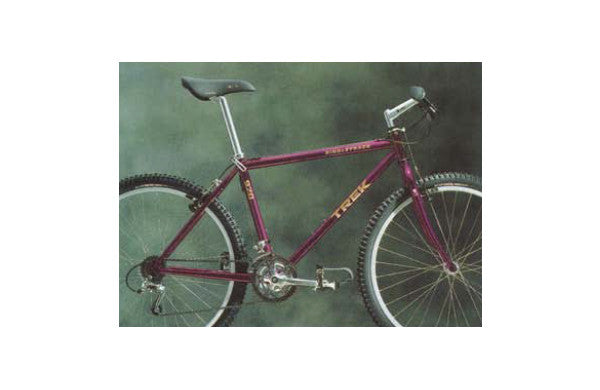

Trek 920 SingleTrack Performance (1994)

View model details →

Trek True Temper custom butted & TIG welded Cro-moly

Trek System 1 butted Cro-moly fork

14.5, 16.5, 18, 19.5, 21"

Ice Violet w/ Gold decals Black Forest Green w/ Gold decals

Drivetrain: Shimano Alivio crankset; Shimano STX derailleurs w/ Grip Shift SRT-300i

Brakeset: Shimano Alivio cantilever M-Mystem

Wheelset: 26" Matrix SingleTrack Comp rims w/ Shimano STX Parallax hubs

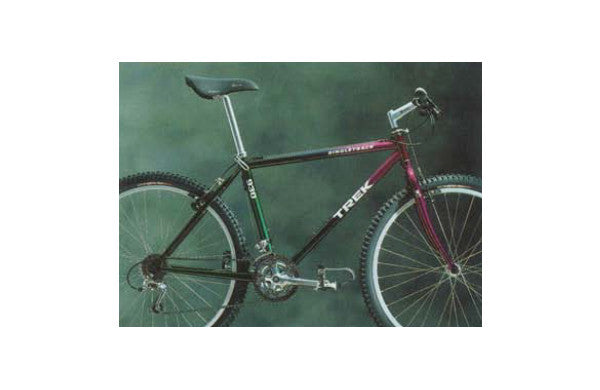

Trek 930 SingleTrack Performance (1994)

View model details →

Trek True Temper custom butted & TIG welded Cro-moly

Trek System 1 butted Cro-moly fork

14.5, 16.5, 18, 19.5, 21"

Ice Violet to Ice Green fade w/ White decals Black w/ Blue decals

Drivetrain: Shimano STX

Brakeset: Shimano STX cantilever M-Mystem

Wheelset: 26" Matrix SingleTrack Comp rims w/ Shimano STX Parallax hubs

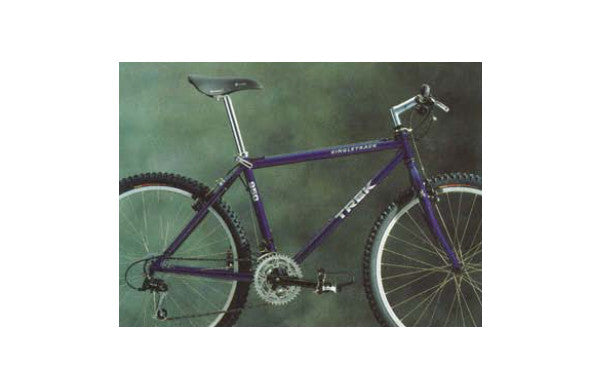

Trek 950 SingleTrack Performance (1994)

View model details →

Trek True Temper custom butted & TIG welded Cro-moly

Trek System 2 butted Cro-moly fork

14.5, 16.5, 18, 19.5, 21"

Ice Blue w/ Silver decals

Drivetrain: Shimano Deore LX w/ Rapidfire Plus shifters

Brakeset: Shimano Deore LX cantilever M-Mystem

Wheelset: 26" Matrix SingleTrack Pro rims w/ Shimano Deore LX Parallax hubs

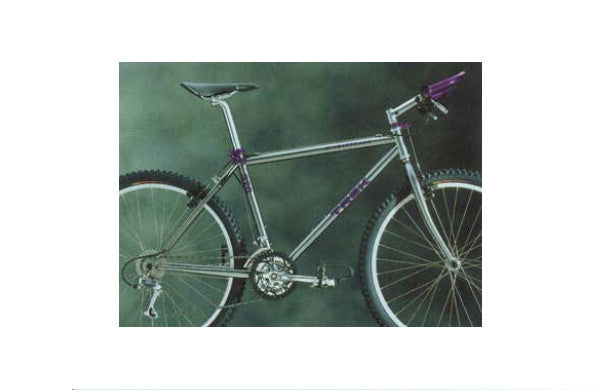

Trek 970 SingleTrack Competition (1994)

View model details →

Trek True Temper custom butted & TIG welded Cro-moly

Trek System 2 butted Cro-moly fork

14.5, 16.5, 18, 19.5, 21"

Black Chrome w/ Purple decals

Drivetrain: Shimano Deore LX crankset; Shimano Deore LX front & Deore XT rear derailleur; Shimano Deore XT Rapidfire Plus shifters

Brakeset: Shimano Deore LX cantilever M-Mystem

Wheelset: 26" Matrix SingleTrack Pro rims w/ Shimano Deore XT Parallax hubs

1995

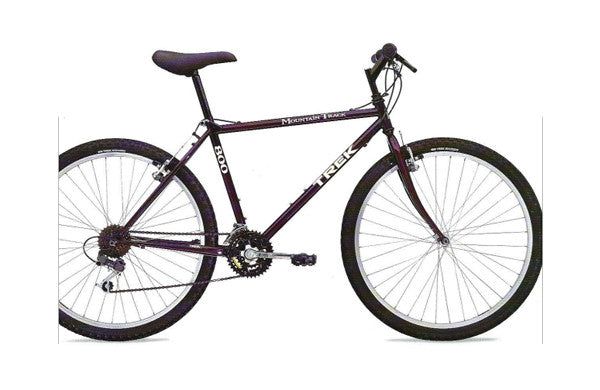

Trek 800 Mountain Track Recreation (1995)

View model details →

Trek Cro-moly main tubes

High tensile stays

14.5, 16.5, 18, 19.5, 21, 22.5"; 17, 20" women's

Ice Violet w/ White decals Black w/ Silver decals Ice Silver to Ice Indigo fade w/ Ice Indigo decals

Drivetrain: Shimano Altus C90; Grip Shift MRX100 shifters

Brakeset: Shimano Altus C90

Wheelset: 26" Weinmann alloy rims w/ low flange alloy hubs

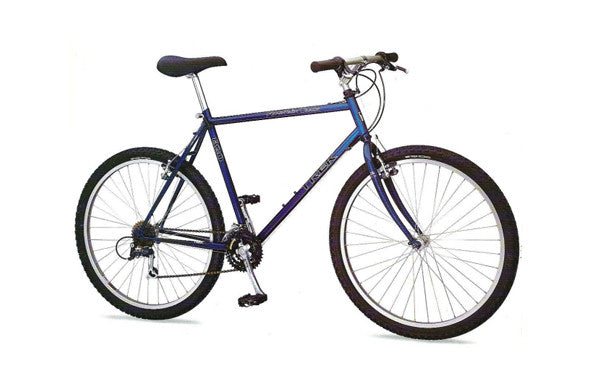

Trek 820 Mountain Track Recreation (1995)

View model details →

Trek Cro-moly main tubes

High tensile stays

14.5, 16.5, 18, 19.5, 21, 22.5, 24"; 17, 20" women's

Ice Cyan Blue to Ice Indigo Blue fade w/ Black decals Sage Green w/ Purple decals

Drivetrain: Shimano Altus C90; Shimano Acera-X rear derailleur; Grip Shift MRX100 shifters

Brakeset: Shimano Altus C90

Wheelset: 26" Weinmann alloy rims w/ Shimano Acera-X rear & alloy front hubs

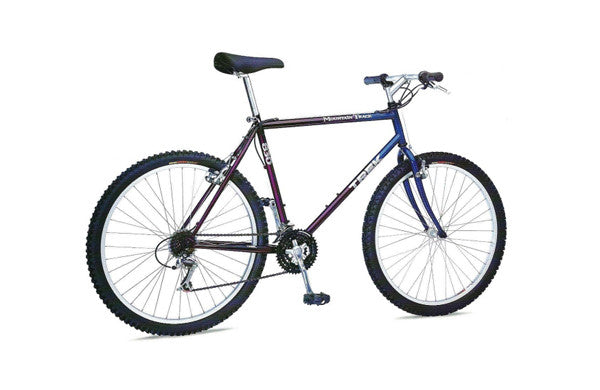

Trek 830 Mountain Track Sport (1995)

View model details →

Trek Cro-moly

Cro-moly fork

14.5, 16.5, 18, 19.5, 21, 22.5"; 17, 20" women's

Ice Blue to Violet fade w/ Silver decals Black w/ Charcoal decals

Drivetrain: Shimano Acera-X; Shimano Alivio rear derailleur; Grip Shift SRT-400 shifters

Brakeset: Shimano Altus C90

Wheelset: 26" Weinmann alloy rims w/ Shimano Acera-X rear & alloy front hubs

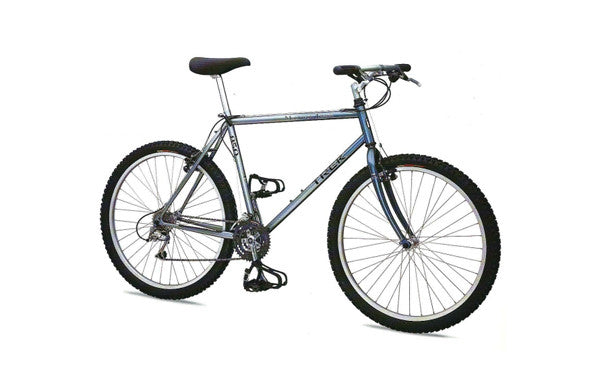

Trek 850 Mountain Track Sport (1995)

View model details →

Trek Cro-moly (OS) main tubes

Trek Cro-moly stays

14.5, 16.5, 18, 19.5, 21, 22.5"

Steel Blue to Mercury Silver fade w/ Black decals Ice Green w/ Blue decals

Drivetrain: Shimano Alivio; Shimano STX rear derailleur

Brakeset: Shimano Acera-X M-System

Wheelset: 26" Araya GP-710 alloy rims w/ Shimano Acera-X Parallax hubs

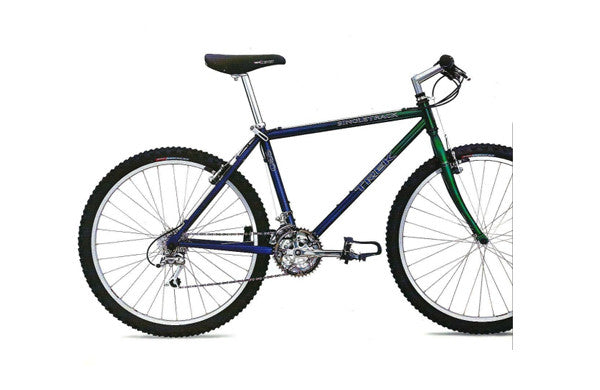

Trek 930 SingleTrack Performance (1995)

View model details →

True Temper custom butted, TIG welded Cro-moly (OS)

Trek System 1 Cro-moly fork

13, 16.5, 18, 19.5, 21, 22.5"

Dry Ice Green to Dry Ice Blue fade w/ Blue decals Ice Cyan Blue w/ Black decals

Drivetrain: Shimano STX w/ Grip Shift SRT-400 shifters

Brakeset: Shimano Acera-X M-System

Wheelset: 26" Matrix SingleTrack Pro rims w/ Shimano Alivio Parallax hubs

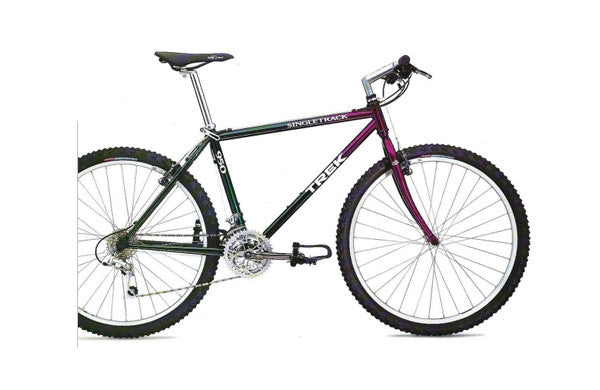

Trek 950 SingleTrack Performance (1995)

View model details →

True Temper custom butted, TIG welded Cro-moly (OS)

Trek System 1 Cro-moly fork

13, 16.5, 18, 19.5, 21, 22.5"

Violet to Green fade w/ White decals Ice Copper w/ Blue decals

Drivetrain: Shimano STX-RC

Brakeset: Shimano Deore LX M-System

Wheelset: 26" Matrix SingleTrack Pro rims w/ Shimano STX-RC Parallax hubs

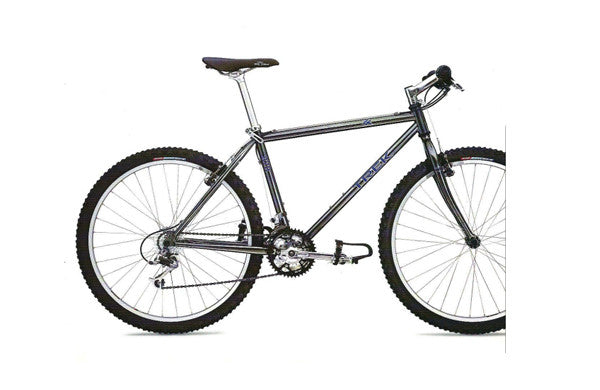

Trek 970 SingleTrack ZX Series Performance (1995)

View model details →

True Temper OXIII heat treated, tri butted, TIG welded Cro-moly (OS)

Trek System 2 Cro-moly fork

13, 16.5, 18, 19.5, 21, 22.5"

Saturn Silver

Drivetrain: Shimano Deore LX; Shimano Deore XT rear derailleur; Grip Shift SRT-800 X-Ray shifters

Brakeset: Shimano Deore LX M-System

Wheelset: 26" Matrix VooDoo rims w/ Shimano Deore LX Parallax hubs

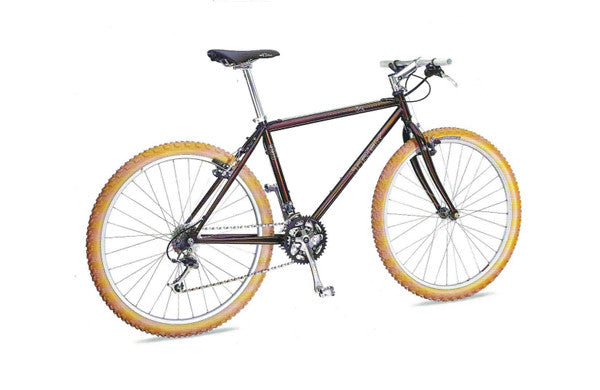

Trek 990 SingleTrack ZX Series Competition (1995)

View model details →

True Temper OXIII heat treated, tri butted, TIG welded Cro-moly (OS)

Trek System 2 Cro-moly fork

13, 16.5, 18, 19.5, 21, 22.5"

Ice Root Beer w/ Sage decals

Drivetrain: Shimano Deore XT

Brakeset: Shimano Deore LX M-System

Wheelset: 26" Matrix VooDoo rims w/ Shimano Deore XT Parallax hubs

1996

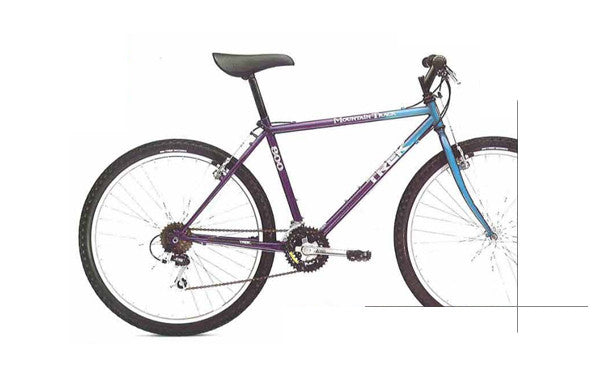

Trek 800 Mountain Track Recreation (1996)

View model details →

Hight tensile steel

Cro-moly seat tube

13.5, 16.5, 18, 19.5, 21, 22.5"; 17, 20 women's

Ice Cyan to Ice Indigo fade w/ Silver decals Dry Ice Plum w/ Black decals

Drivetrain: Shimano Altus c90; Grip Shift MRX-100 shifters

Brakeset: Shimano Altus C90 brakes, Chang Star 274A levers

Wheelset: 26" Matrix 519 alloy rims w/ alloy hubs

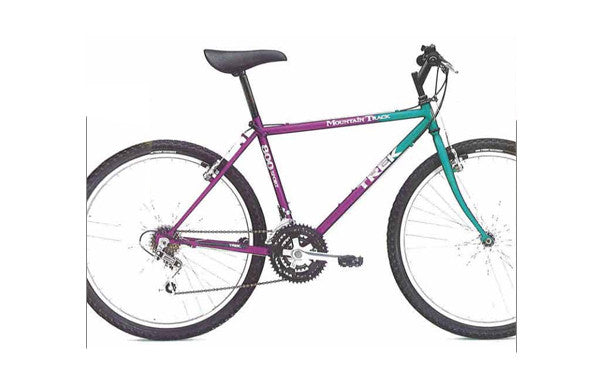

Trek 800 Sport Mountain Track Recreation (1996)

View model details →

Hight tensile steel main

Cro-moly seat tube

13.5, 16.5, 18, 19.5, 21, 22.5"; 17, 20 women's

Dry Ice Emerald to Dry Ice Purple Fade w/ Silver decals Gloss Black w/ Reflex Blue decals

Drivetrain: SR crankset; Shimano Tourney TY-22 derailleurs & shifters

Brakeset: Shimano Altus C90 brakes, Chang Star 274A levers

Wheelset: 26" Weinmann 519 alloy rims w/ alloy hubs

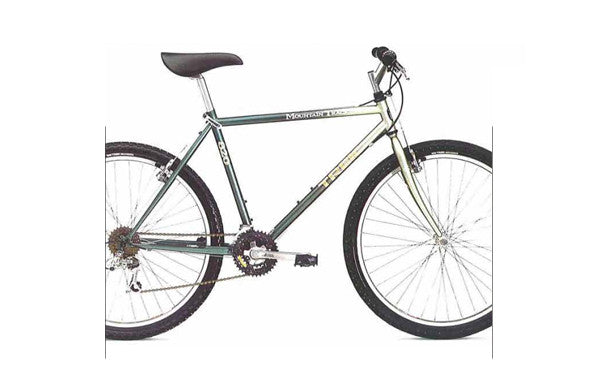

Trek 820 Mountain Track Recreation (1996)

View model details →

Trek Cro-moly main tubes

Hight tensile steel stays

13.5, 16.5, 18, 19.5, 21, 22.5, 24"; 17, 20 women's

Dry Titanium to Dry Slate Green fade w/ Gold decals Baja Blue w/ Black decals Ice Green w/ Gold decals

Drivetrain: Shimano Altus c90; Shimano Acera-X rear derailleur; Grip Shift MRX-100 shifters

Brakeset: Shimano Altus C90 brakes, Chang Star 274A levers

Wheelset: 26" Matrix 519 alloy rims w/ Shimano Acera-X rear & alloy front hubs

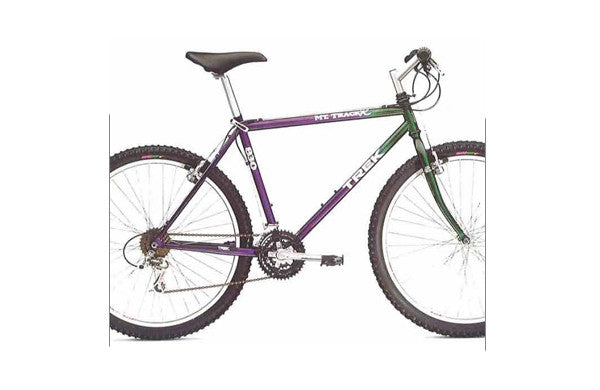

Trek 830 Mountain Track XC Enthusiast (1996)

View model details →

Trek OS Cro-moly main tubes

Hight tensile steel stays

13.5, 16.5, 18, 19.5, 21, 22.5, 24"; 17, 20 women's

Ice green to Ice Indigo fade w/ silver decals Dry Silver w/ Black decals Ice Indigo to Ice Violet fade w/ Silver decals

Drivetrain: Shimano Acera-X; Shimano Alivio rear derailleur; Grip Shift SRT-300 shifters

Brakeset: Shimano Altus C90 brakes, Chang Star 274A levers

Wheelset: 26" Matrix 519 alloy rims w/ Shimano Acera-X rear & alloy front hubs

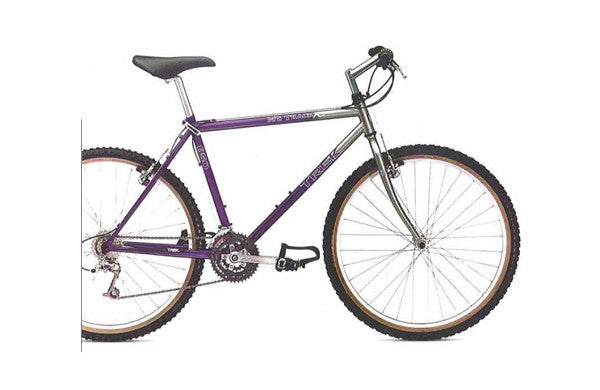

Trek 850 Mountain Track XC Enthusiast (1996)

View model details →

Trek Cro-moly main tubes & stays

Trek Cro-moly fork

13.5, 16.5, 18, 19.5, 21, 22.5"

Saturn Silver to Ice Indigo fade w/ Ice Indigo decals Dry Ice Red w/ Black decals

Drivetrain: Shimano Alivio; Shimano STX rear derailleur; Grip Shift SRT-400 shifters

Brakeset: Shimano Acera-X M-System brakes, Chang Star 274AG levers

Wheelset: 26" Matrix Lobo WM rims w/ Shimano Acera-X rear & alloy front hubs

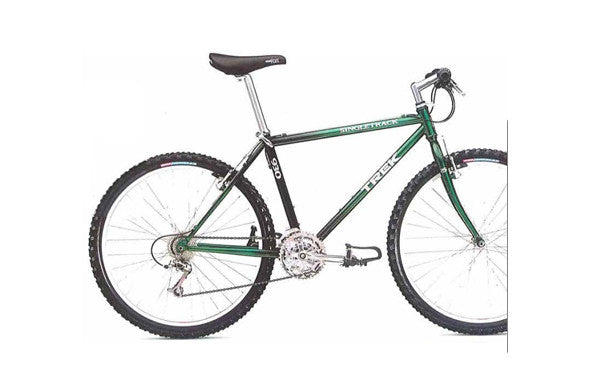

Trek 930 SingleTrack Performance (1996)

View model details →

True Temper triple butted, TIG welded Cro-moly

Trek System 1 Cro-moly fork

13, 16.5, 18, 19.5, 21, 22.5"

Ice Green to Black to Green fade w/ Titanium decals Ice Inkwell Blue w/ Silver decals

Drivetrain: Shimano STX; Grip Shift SRT-400 shifters

Brakeset: Shimano Alivio M-System brakes w/ Chang Star 274AG levers

Wheelset: 26" Matrix Lobo WM rims w/ Shimano R050 rear & System 1 front hubs

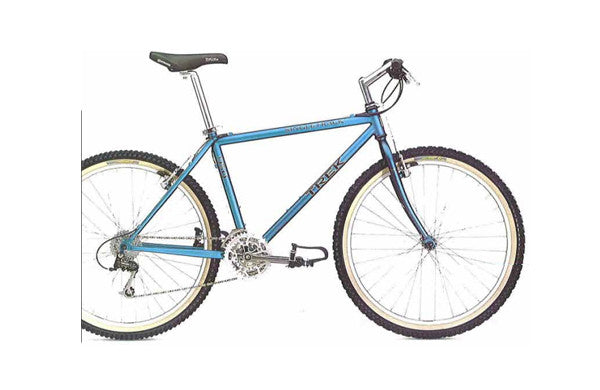

Trek 950 SingleTrack High Performance (1996)

View model details →

True Temper triple butted, TIG welded Cro-moly

Trek System 1 Cro-moly fork

13, 16.5, 18, 19.5, 21, 22.5"

Dry Ice Cyan w/ Black decals Dry Ice Black w/ Silver decals

Drivetrain: Shimano STX-RC; Shimano Deore LX rear derailleur

Brakeset: Shimano STX w/ Shimano Deore LX levers

Wheelset: 26" Matrix Lobo WM rims w/ Shimano Deore LX rear & System 2 front hubs

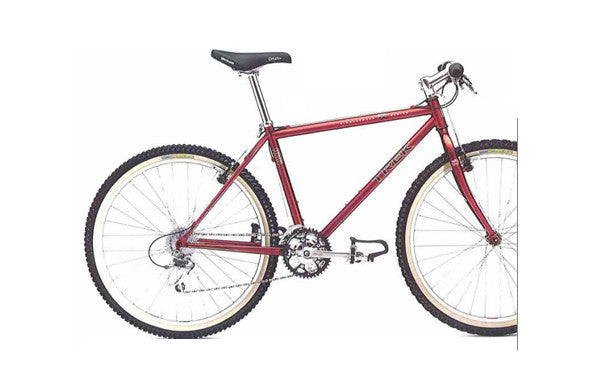

Trek 970 SingleTrack ZX Series High Performance (1996)

View model details →

True Temper OXIII heat treated, triple butted, TIG welded Cro-moly (OS)

Trek System 2 Cro-moly fork

13, 16.5, 18, 19.5, 21, 22.5"

Ice Fire w/ Black decals

Drivetrain: Shimano Deore LX; Shimano Deore XT rear derailleur; Grip Shift SRT-800 shifers

Brakeset: Shimano Deore LX w/ Dia-Compe PC-7 levers

Wheelset: 26" Matrix Swami WM rims w/ Shimano Deore LX rear & System 3 front hubs

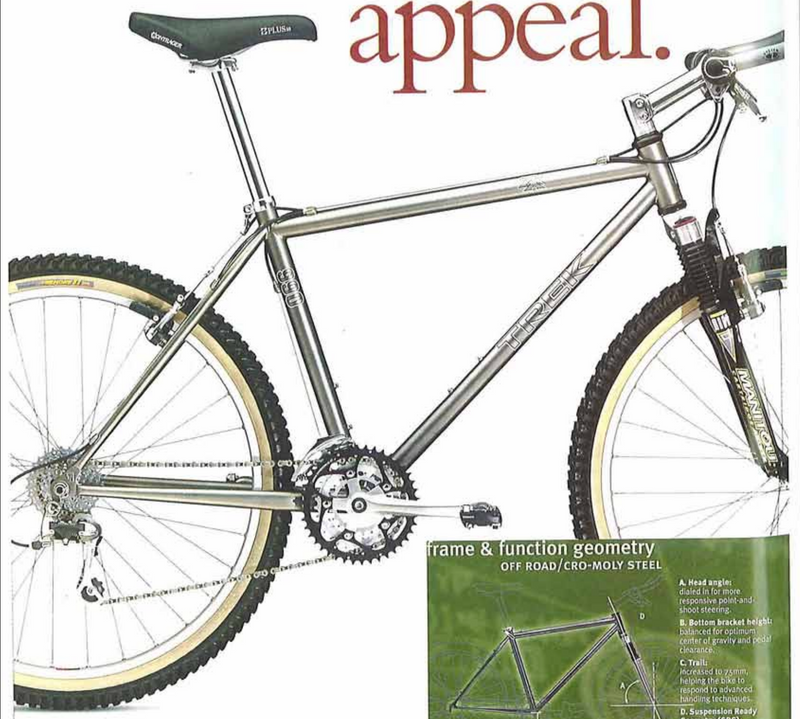

Trek 990 SingleTrack ZX Series Competition (1996)

View model details →

True Temper OXIII heat treated, custom butted, TIG welded Cro-moly (OS)

Trek System 2 Cro-moly fork

13, 16.5, 18, 19.5, 21, 22.5"

Dry Ice Titanium w/ Black outline decals

Drivetrain: Shimano Deore XT; Grip Shift SRT-800 shifers

Brakeset: Shimano Deore XT M-System w/ Dia-Compe PC-7 levers

Wheelset: 26" Matrix Swami WM rims w/ Shimano Deore XT rear & System 3 front hubs

1997

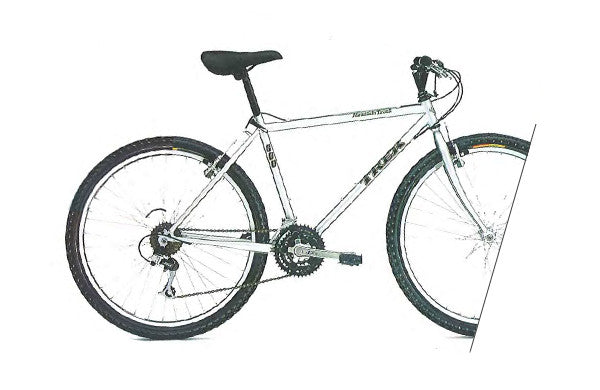

Trek 800 Mountain Track Recreation (1997)

View model details →

High tensile

Cro-moly seat tube

13.5, 16.5, 18, 19.5, 21, 22.5"; 17, 20 women's

Gloss Bright Silver w/ Black decals Dry Dark Blue w/ White decals

Drivetrain: Shimano Altus

Brakeset: Shimano Altus w/ alloy levers

Wheelset: 26" Weinmann 519 rims w/ alloy hubs

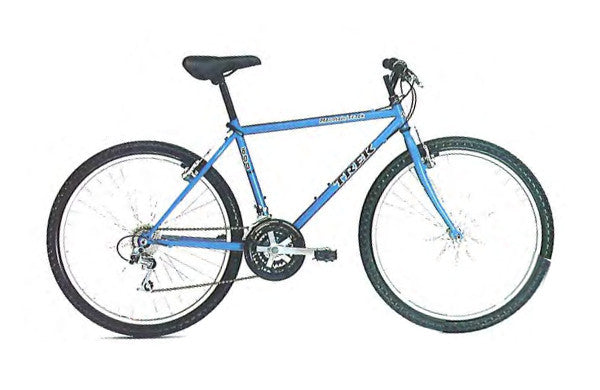

Trek 800 Sport Mountain Track Recreation (1997)

View model details →

High tensile frame & fork

13.5, 16.5, 18, 19.5, 21, 22.5, 24"; 17, 20 women's

Dry Bright Blue w/ Black decals Gloss Ice Green w/ White decals

Drivetrain: SR crankset; Shimano Tourney; Grip Shift MRX-170 shifters

Brakeset: Shimano Altus w/ alloy levers

Wheelset: 26" Weinmann 519 rims w/ alloy hubs

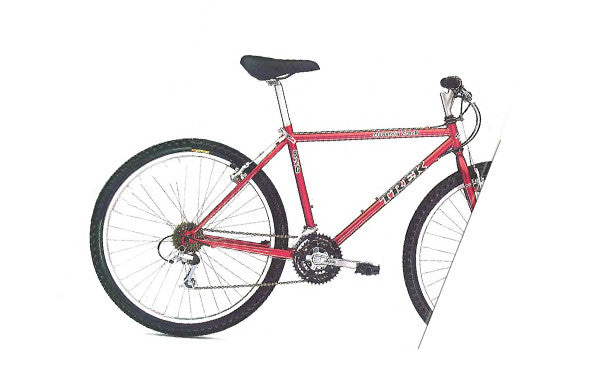

Trek 820 Mountain Track Recreation (1997)

View model details →

Cro-moly main tubes

High tensile stays

13.5, 16.5, 18, 19.5, 21, 22.5, 24"; 17, 20 women's

Gloss Red w/ Black decals Gloss Black w/ silver decals

Drivetrain: Shimano Alivio rear derailleur; Shimano Altus; Grip Shift MRX-170 shifters

Brakeset: Shimano Altus w/ alloy levers

Wheelset: 26" Weinmann 519 rims w/ Shimano Altus rear & alloy front hubs

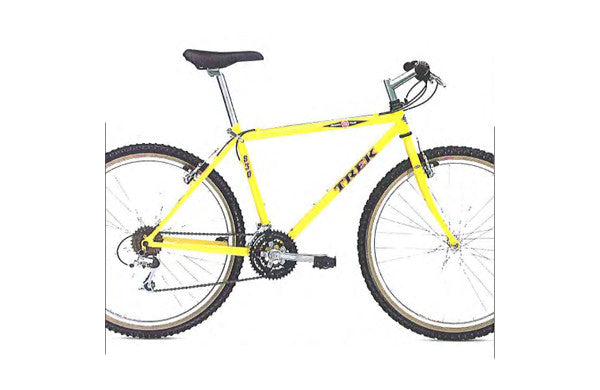

Trek 830 Mountain Track XC Series Enthusiast (1997)

View model details →

Cro-moly frame

Cro-moly fork

13, 16.5, 18, 19.5, 21, 22.5"; 17, 20 women's

Gloss Judy Yellow w/ Black decals Gloss Inkwell w/ Silver decals

Drivetrain: Shimano Alivio rear derailleur; Shimano Acera-X; Grip Shift SRT-400 shifters

Brakeset: Shimano Acera-X M-System brakes, Dia-Compe SS-8 levers

Wheelset: 26" Weinmann 519 rims w/ Shimano Acera-X rear & aluminum front hubs

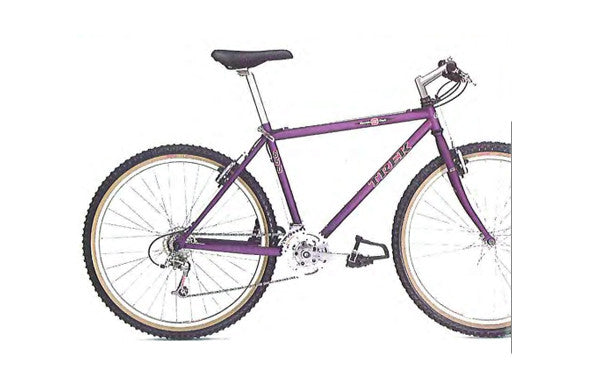

Trek 850 Mountain Track XC Series Enthusiast (1997)

View model details →

True Temper double butted, TIG welded Cro-moly

Cro-moly fork

13, 16.5, 18, 19.5, 21, 22.5"

Dry Ice Blue w/ Black decals

Drivetrain: Shimano Alivio cransket; Shimano Alivio front & STX rear derailleur; Shimano STX shifters

Brakeset: Shimano Alivio

Wheelset: 26" Matrix Guru rims w/ Shimano Alivio rear & aluminum front hubs

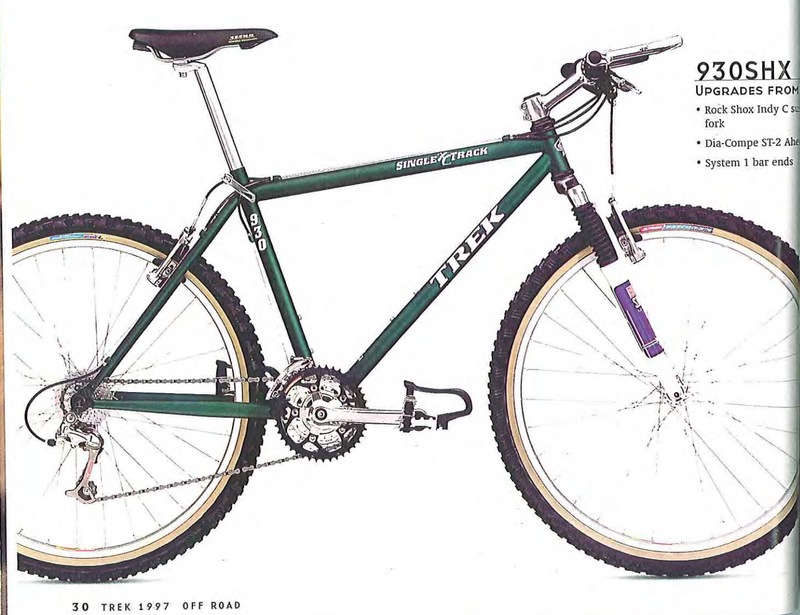

Trek 930 SingleTrack XC Series Performance (1997)

View model details →

True Temper custom butted, TIG welded Cro-moly

Trek System 1 Cro-moly fork

13, 16.5, 18, 19.5, 21, 22.5"

Dry Ice Green w/ Cream decals

Drivetrain: Shimano STX; Grip Shift SRT-400 shifers

Brakeset: Shimano M600 V-Brakes w/ Tektro 376A levers

Wheelset: 26" Matrix Guru rims w/ Shimano STX-RC rear & System 1 front hubs

1998

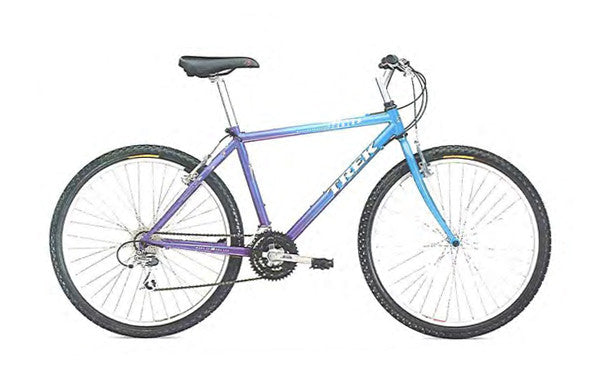

Trek 800 Mountain Track Recreation (1998)

View model details →

High tensil

Cro-moly seat tube

13.5, 16.5, 18, 19.5, 21, 22.5"; 17, 20 women's

Mediterranean Blue to Ice Inkwell fade w/ White decals Bright Silver w/ Red decals

Drivetrain: Shimano Altus

Brakeset: Lee Chi TX33 brakes w/ Shimano Altus levers

Wheelset: 26" Weinmann 519 rims w/ Shimano Altus rear & alloy front hubs

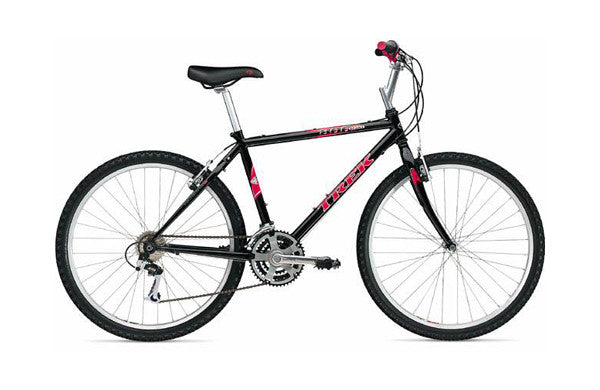

Trek 800 Sport Mountain Track Recreation (1998)

View model details →

High tensile

Cro-moly seat tube

13.5, 16.5, 18, 19.5, 21, 22.5"; 17, 20 women's

Gloss Black w/ Red decals Mellow Gold w/ Red decals

Drivetrain: Shimano Tourney; Grip Shift MRX-170 shifters

Brakeset: Shimano Altus w/ Lee Chi LC26 levers

Wheelset: 26" Weinmann 519 rims w/ aluminum hubs

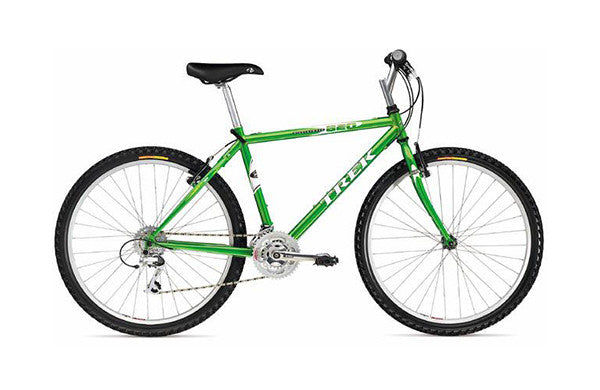

Trek 820 Mountain Track Enthusiast (1998)

View model details →

Cro-moly main tubes

High tensile stays

13, 16.5, 18, 19.5, 21, 22.5, 24"; 17, 20 women's

Ice Red to Ice Orange fade w/ Black decals Ice Green w/ Silver decals

Drivetrain: Shimano Altus crankset; Shimano Altus front & Alivio rear derailleur; Grip Shift MRX-170 shifters

Brakeset: Lee Chi TX22 brakes w/ Lee Chi LV77E levers

Wheelset: 26" Weinmann 519 rims w/ Shimano Altus rear & aluminum front hubs

Trek 920 SingleTrack Performance (1998)

View model details →

True Temper triple butted Cro-moly main tubes

Cro-moly stays

13, 16.5, 18, 19.5, 21, 22.5, 24"

Ice Inkwell w/ Silver decals Bright Silver w/ Mango decals

Drivetrain: Sugino Impel 250 crankset; Shimano Acera-X front & STX-RC rear derailleur; Grip Shift SRT 6.0 shifters

Brakeset: Lee Chi TX22 brakes w/ Lee Chi LV77E levers

Wheelset: 26" Matrix Guru rims w/ System 1 front & aluminum rear hubs

1999

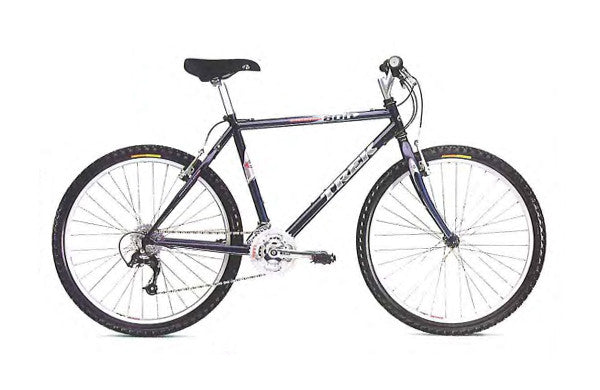

Trek 800 Mountain Track Recreation (1999)

View model details →

High tensile main tubes & stays

Cro-moly seat tube

13, 16.5, 18, 19.5, 21, 22.5" and 17, 20" women's

Pearl Navy Metallic Ice Red

Drivetrain: Shimano Altus; SRAM ESP 5.0 rear derailleur; Grip Shift ESP 5.0 shifters

Brakeset: Lee Chi ProMax MV-33 linear-pull brakes w/ Lee Chi LV77E levers

Wheelset: Weinmann 519 rims w/ Kung Ten alloy hubs

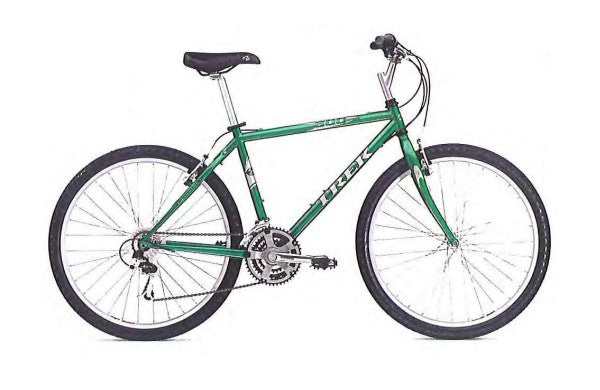

Trek 800 Sport Mountain Track Recreation (1999)

View model details →

High tensile main tubes & stays

Cro-moly seat tube

13, 16.5, 18, 19.5, 21, 22.5" and 17, 20" women's

Gloss black Metal Flake Green Violet Pearl

Drivetrain: Shimano Tourney; Shimano ALtus rear derailleur; Grip Shift MRX shifters

Brakeset: Chang Star VB-965 D brakes w/ Lee Chi ProMax LV-68 linear-pull levers

Wheelset: Weinmann 519 rims w/ Kung Ten aluminum hubs

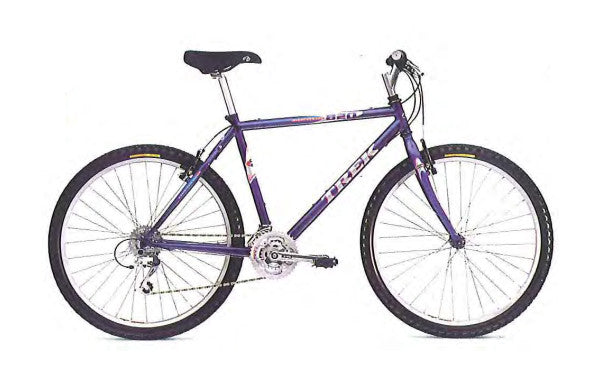

Trek 820 Mountain Track Recreation (1999)

View model details →

Cro-moly main tubes

High tensile stays

13, 16.5, 18, 19.5, 21, 22.5, 24" and 17, 20" women's

Dragonfly Green Inkwell Blue

Drivetrain: Shimano Altus; Shimano Alivio rear derailleur; Grip Shift Centera shifters

Brakeset: Lee Chi TX22 brakes w/ Lee Chi LV77E levers

Wheelset: Weinmann 519 rims w/ Kung Ten alloy hubs

Reference library

Build a bike that’s yours

Choose the parts and make your build your own.

Plan your build
