5 Measurements Before You Buy Bike Parts

Almost every wrong parts order starts with one of five numbers. Measure these first and you will rarely need a return label.

Old bikes collect non-original parts over decades, so the catalogue specification is a clue, not a verdict. A ruler works for some checks; an inexpensive caliper works better.

1. Handlebar clamp diameter

Stem handlebar clamps are usually 25.4 mm on 1990s bikes or 31.8 mm on modern bikes. They can look nearly identical and they do not interchange. Measure the bar where the stem clamps it, or check for a marking on the stem.

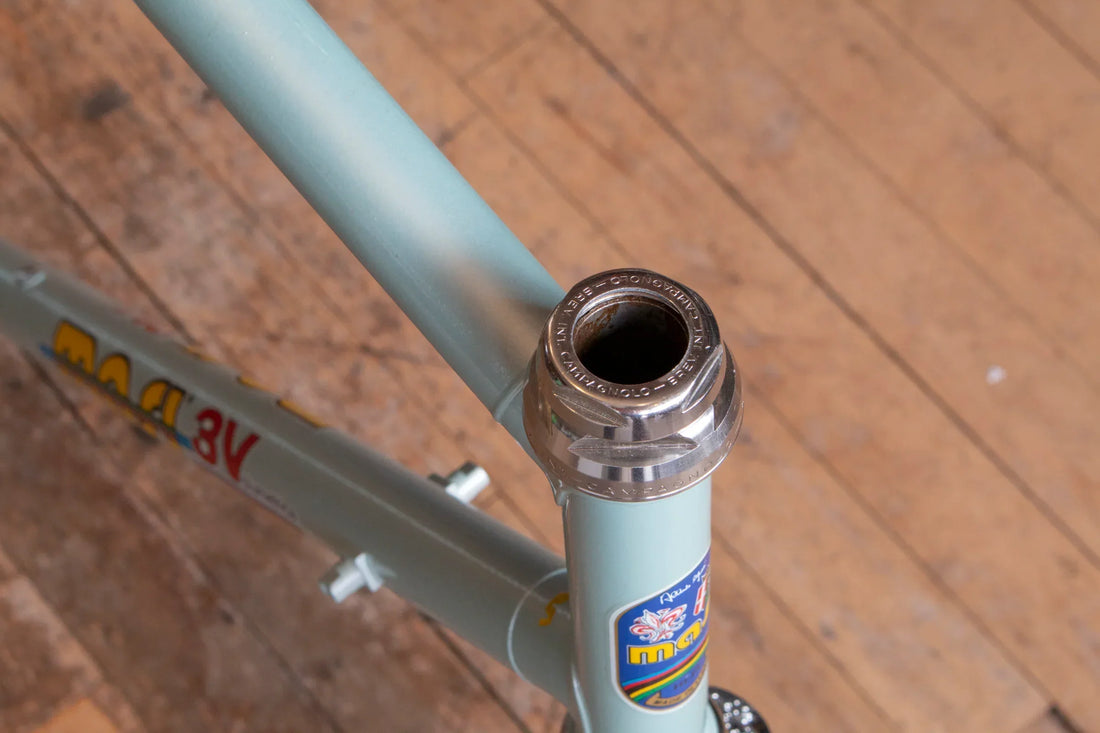

2. Steerer type and size

A threaded fork uses a quill stem—usually a 22.2 mm quill in a 1-inch steerer. A threadless fork uses a clamp-on stem, most often 1 1/8 inches. If you are unsure which one you have, use our two-minute identification guide.

3. Seatpost diameter

The difference between 26.8, 27.0 and 27.2 mm is smaller than a fingernail, and the sizes are not interchangeable. The number is often stamped near the minimum-insertion line. No marking? This is where the caliper earns its keep.

4. Brake and lever pull

V-brakes need long-pull levers. Cantilever and caliper brakes use short-pull levers. Mix them and the brake can feel like wet cardboard. Brake and lever are best treated as a matched system—that is why we offer brake kits.

5. Frame mounts and wheel size

Look for threaded eyelets near the dropouts and on the seatstays. Then read the rim size from the tire sidewall: ISO 559 is the common 26-inch MTB standard. Racks fit measurements and mounting points, not model names.

How to get trustworthy numbers

Clean the part before measuring. Take two readings at different angles and write the units beside the number. A metal ruler is enough for eyelet spacing and approximate clamp sizes; a vernier or digital caliper is the better tool for seatposts, quills and steerers.

Do not force a “nearly right” part. A 27.2 mm seatpost does not belong in a 27.0 mm frame, and a shim cannot correct every mismatch. Look for stamped sizes first, measure second and ask before sanding or spreading anything.

Keep a bike record

Save the five numbers with two photos: one of the cockpit and one of the brake and dropout area. The next cable, rack or handlebar order becomes much simpler. For the steering system, use our visual identification guide; for brake compatibility, read the cantilever versus V-brake guide.

If any number is unclear, ask for free Fit Help before ordering. Send clear photos and the measurements you have. We can help review compatibility based on the information you provide; this is not a guarantee of fit or a physical safety inspection. Orders without bike information follow our usual shipping process.
