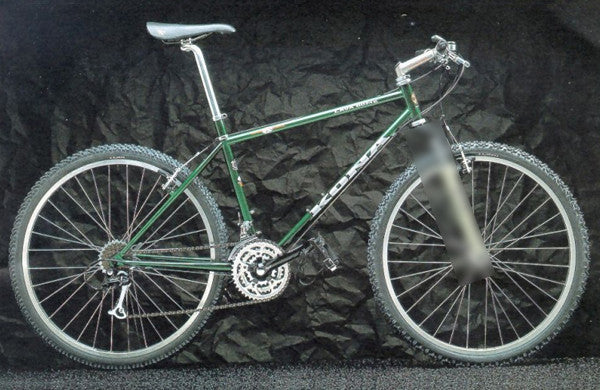

Reference image. Colours and equipment may differ between markets and production runs.
The Good Detour archive
1994 Kona Lava Dome
Catalogue specifications and reference material for the 1994 Kona Lava Dome. Use this record to identify an old bike and plan its next chapter.
This is a historical reference, not a bicycle for sale. Check the actual bike: original specifications may vary, and previous owners may have changed its parts.
Recorded specifications
- Frame
- Tange Double Butted Cromoly main tubes
- Fork
- Super Light stays
- Frame sizes
- 14, 16, 18, 19, 20"
- Colours
- Green
- Drivetrain
- Sugino Impel 400 crankset; STX front & Shimano Deore LX rear derailleur; Shimano Deore DX Top Mount shifters (3x8 speed)
- Brakes
- Kona Race Light cantilever w/ High Command levers
- Wheels
- Bontrager BCX-3 rims w/ Kona Race Light front & Shimano STX rear hub
